D | W | Wa | Wb | 26 L | La | C | D | d | d2 | E | e | K |
16 | 54 | 44 | 33 | 65 | 38 | 8 | 30 | 6.6 | 9 | 6.6 | 6 | 18 |
20 | 64 | 51 | 38 | 70 | 42 | 40 | 8.6 | 11 | 9 | 8 | ||
25 | 70 | 58 | 45 | 80 | 45 | 10 | 45 | 20 | ||||
30 | 78 | 64 | 51 | 100 | 70 | 8 | 50 | 13 | 40 | |||
35 | 92 | 75 | 58 | 115 | 85 | 55 | 10.6 | 11 | 10 | 50 | ||
40 | 100 | 82 | 66 | 125 | 60 | 17 |
D | h | T | Ta | G | F | a | g | Sw1 | Sw2 | Ma |
16 | 20 | 24 | 15 | 20 | 40 | 13 | 10 | 17 | 14 | M8 |
20 | 58 | 30 | 18 | 24 | 17 | 13 | 22 | 19 | M10 | |
25 | 35 | 20.5 | 26 | 45 | 22 | 14 | 27 | 22 | ||
30 | 38 | 22 | 30 | 55 | 27 | 15 | 32 | 27 | ||
35 | 30 | 40 | 23 | 34 | 70 | 31 | 16 | 36 | 32 | M12 |
40 | 43 | 24.5 | 38 | 36 | 41 | 38 |
D | H | H1 | L1 | MxP | A 指定單位0° | A 指定單位0° | ||||
0°-10° | 11°-15° | 16°-20° | 0°-10° | 11°-20° | 0°-10° | 11°-20° | ||||
16 | 35 | 41 | 48 | 21 | 28 | 42 | 50 | M14x1.5 | 0° | 1°-20° |
20 | 40 | 47 | 55 | 21.5 | 29 | 45 | 54 | M18x1.5 | ||
25 | 44 | 52 | 61 | 25 | 30.5 | 49 | 59 | M22x1.5 | ||
30 | 54 | 62 | 72 | 28 | 35 | 54 | 64 | M27x1.5 | ||
35 | 60 | 70 | 82 | 29 | 38 | 58 | 68 | M30x1.5 | ||
40 | 65 | 78 | 90 | 39 | 60.5 | 70.5 | M36x1.5 |

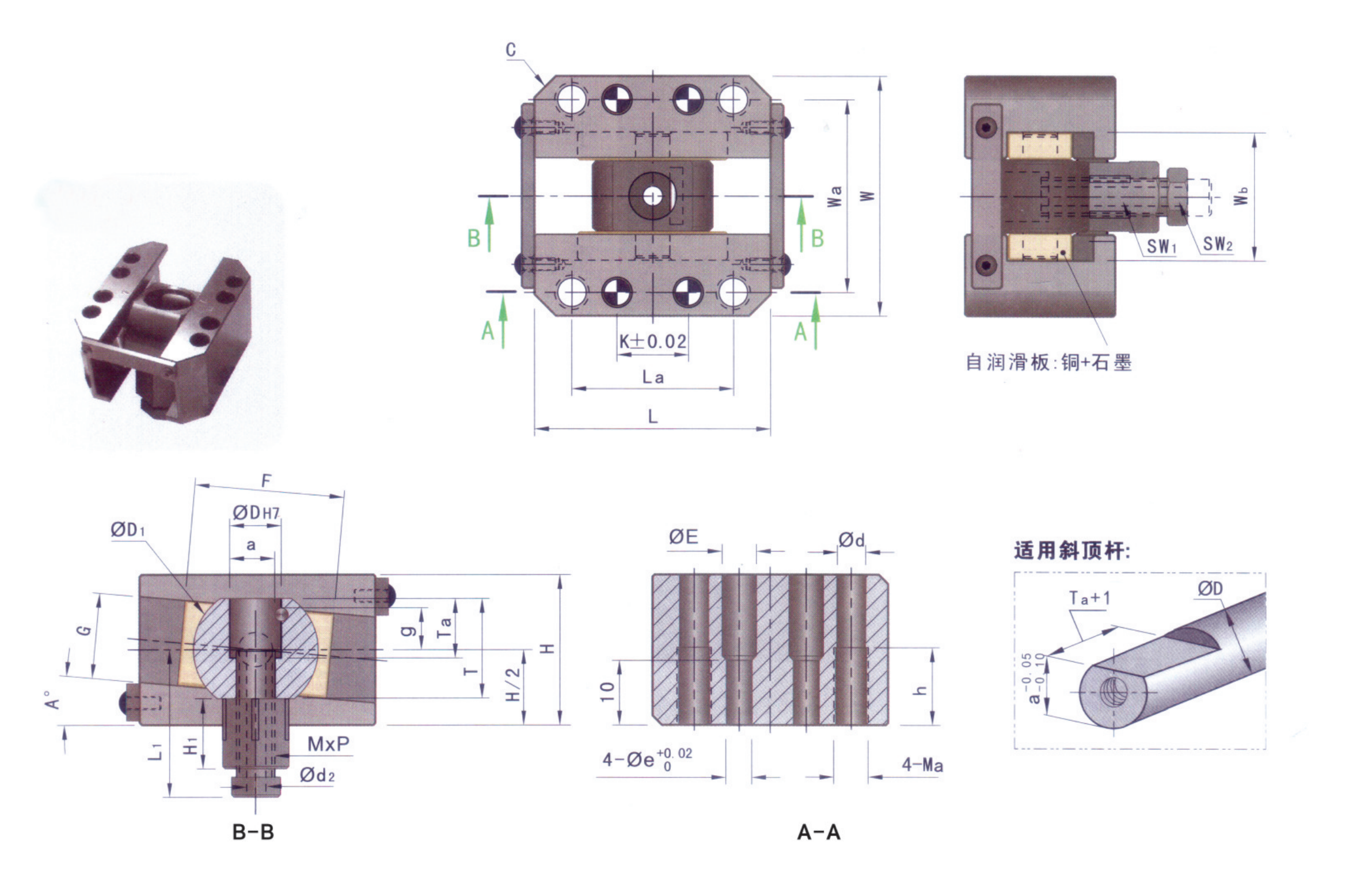

訂購(gòu):斜頂滑座 RCSUM-1
